FPSO with dynamic moorings

Follow vessel motion and mooring tension together as a floating system responds to a short surge pulse.

How do a vessel and its moorings move together?

Original 3D simulation of the FPSO and its four dynamic mooring lines.

What you can model

A floating vessel connects to four discretized mooring lines through eccentric fairleads. The vessel diagram identifies its body axes and attachment locations. In the animation, the initially slack lines settle under submerged weight while a synthetic surge pulse excites the coupled vessel-and-line system.

Vessel geometry diagram showing body axes and the fairleads where mooring forces act.
Vessel geometry diagram showing body axes and the fairleads where mooring forces act.

What you can explore

Compare surge and heave with the fairlead-tension histories. Use the animation to relate changes in line shape to the motion and forces in the plots. Reading them together shows how moving mooring lines exchange load with the floating body during the disturbance.

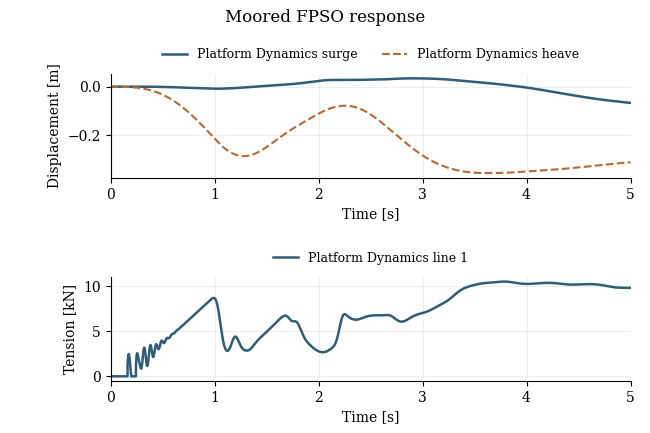

Platform displacement and dynamic fairlead tension.
Platform displacement and dynamic fairlead tension.
