Ballast and platform tilt

Connect ballast redistribution to changes in platform roll and pitch, from planned tank fills to the resulting motion.

How does redistributing ballast change platform tilt?

Cutaway of a tilted cylindrical Spar revealing unequal ballast levels below a horizontal sea surface
Mechanism illustration: unequal ballast levels inside a tilted Spar, shown against a horizontal waterline. Conceptual cutaway; not to scale.

What you can model

Four initially half-full tanks move toward planned fill levels on a supported Spar. The allocation diagram shows where the ballast sits and how its distribution affects platform pose. Prescribed fill histories change the liquid weight, allowing the mechanical response to determine heel and trim.

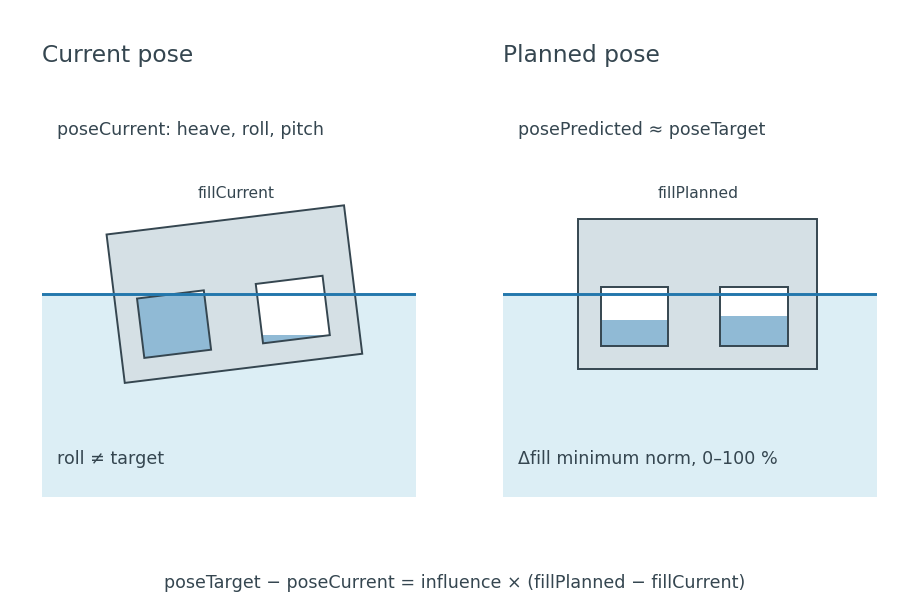

Conceptual ballast allocation and its effect on platform pose.
Conceptual ballast allocation and its effect on platform pose.

What you can explore

Follow each tank fill and compare requested roll and pitch with the resulting angles. The error traces show how closely the platform reaches the planned attitude as the weight shifts. These views connect ballast allocation to the motion produced over the full maneuver.

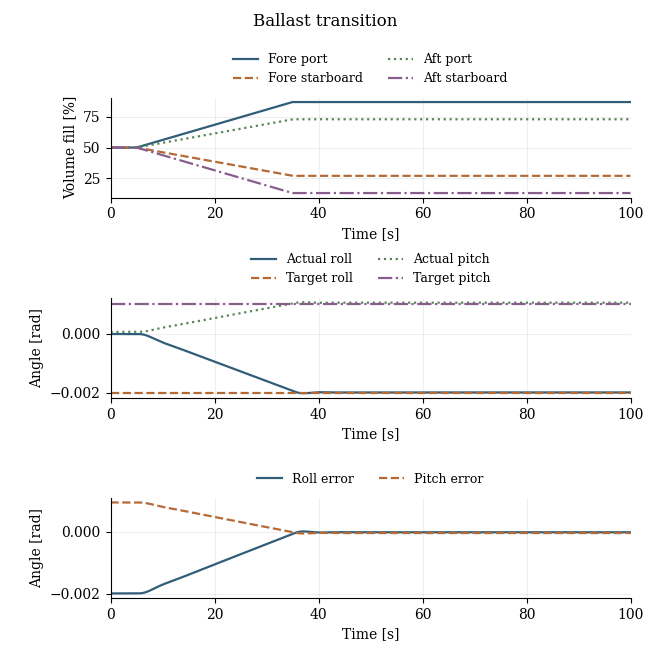

Tank fills, requested and actual angles, and remaining angle errors.
Tank fills, requested and actual angles, and remaining angle errors.
